Impedance Frequency range ELECTRICAL DATA TEST REQUIREMENTS V S W R Insertion Loss (Max) Operating Temperature / Humidity 50 Ω 1700 ~ 2400 MHz 1.2 : 1 -3.5dB Input Power 1W Isolation (Max) -20dB -30°C to +60 °C / Up to 95%
Power Divider Series
SMA-2way Divider ,SMA-4way Divider

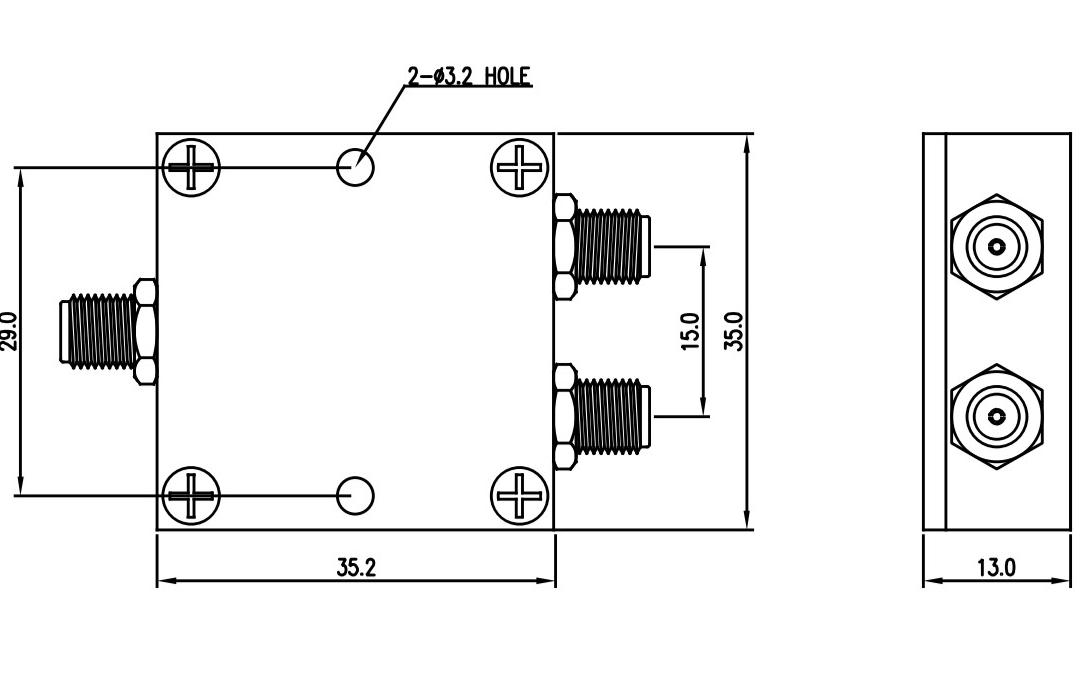

Model : RDSA-G201
